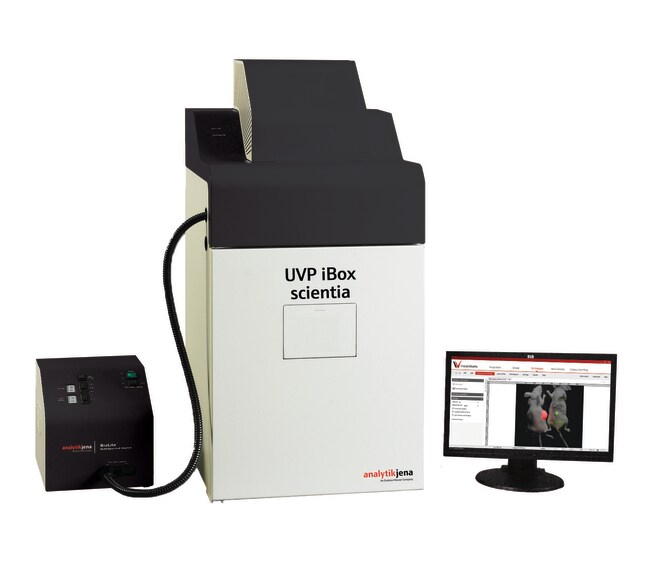

UVP iBox Scientia In Vivo 610 Imaging Systems UVP97061501

Description

Includes

UVP iBox Scientia includes an eLITE with GFP/RFP filter sets and a warming plate. UVP iBox Scientia does not include an Anesthesia Kit or a computer.

Non invasive system detects fluorescent probes in visible to near infrared (NIR) to ultra violet wavelength ranges for in vivo small animal imaging

Easy to use optical imaging system for non invasive detection of fluorescent markers in small animals

Comes with high resolution, deeply cooled CCD camera and high sensitivity optics

High resolution and low light sensitivity allows for faint target detection

Included warming plate provides optimum temperature for animals (37°C)

Automated eLITE Xe MultiSpectral Source with external power supply facilitates high intensity illumination, includes GFP/RFP excitation filters

White light source with epi and transillumination (365nm UV, 480nm blue)

VisionWorks software controls raw image data capture and darkroom functions

Analysis features include measurement, area density calculations and multiplex imaging

Five position filter wheel includes two filters (GFP and RFP, both emission and excitation)

Automated with software control for reproducible, consistent results

Motorized platform with 10 in. range

Camera optionsBioCam 900: 1MP, 1024 x 1024 resolution, Choice of 50mm f/1.2 or 25mm f/0.95 motorized lensOptiChemi 615: 3.2MP (extendable to 9.6MP), 2184 x 1472 resolution, Choice of 50mm f/1.2 or 25mm f/0.95 motorized lens, eLITE Xe Automated MultiSpectral Source

Light Source: 150w xenon

Eight excitation filter positions

Green fluorescent protein (GFP) and red fluorescent protein (RFP) excitation filters included, additional filter sets available

Fiber Optic: Epi illumination with light head mounted inside darkroom

Software or manual control

Dimension: 25.4 x 17.8 x 22.2cm

VisionWorks Software

Prioritizes data integrity with unmodified raw image data

Tools: Macros, templates, annotation, highlights, text, quantitative analysis, tumor volumes and measurements

Documentation: Create reports and export data

Compliance: Supports 21 CFR Part 11

Compatibility: Win 7, 8, 10

Optional anesthesia kit with five nose cones can be added to iBox Scientia system and computer/monitor ordered separately. Additional wavelength filters available.

For basic and preclinical research studies in tumors, immunology, oncology, metastasis and metabolic diseases
