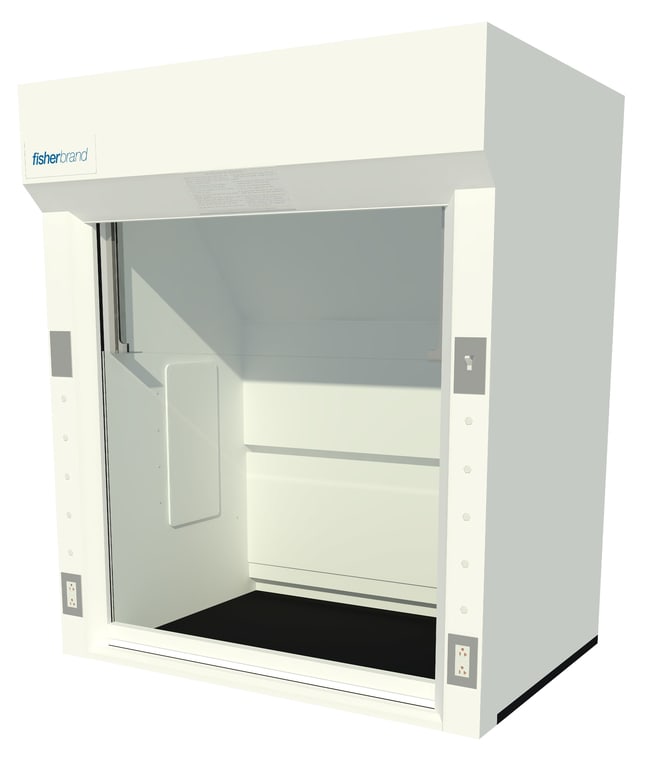

Fisherbrand Standard Bench Chemical Fume Hood

Description

• The expansive interior is enhanced by a 43 in. tall sight line with a 17 in. high glass observation panel.
• Includes frameless vertical rising sash with a 28 in. clear sash opening.
• Easy conversion from CAV to VAV use
• Chain and Sprocket sash mechanism for ease in operation
• Tempered glass sash with full-length formed steel handle for a neat, clean appearance and streamline air passage.
• Stainless steel round duct collar(s)
• Color: Fisherbrand White
• Fisherbrand hoods are UL 1805 listed and are tested in accordance to ASHRAE-110.
• All hoods are pre-wired to a junction box on the roof of the hood with two 120 volt AC 20 amp GFCI receptacles on the side posts, LED strip lighting, 20 amp light switch and a duplex for an alarm on the roof.
• Each front post and interior end liner is punched and capped for up to five (5) remote control service fittings.
• The left hand post is punched and covered for a second electrical fixture at the top which may be used for a fan switch or other electrical device. The right post is punched and covered for an alarm.
• Service fittings, fan switch, work top, cup sink, alarm, and base units must be ordered separately.
