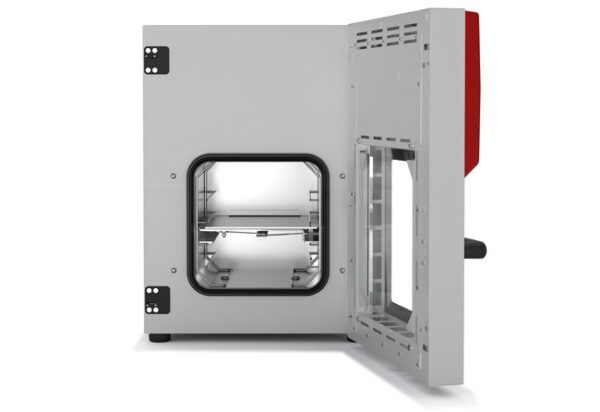

BINDER VD Series Vacuum Drying Chambers for Non-Flammable Solvents

Description

Benefits

• Fast, gentle drying
• Expansion rack technology ensures optimal heat transfer
• Direct heat transfer through large thermal conducting plates
• Safe work thanks to proven safety concept
• Also option of modular complete system with vacuum pump and pump chamber
• Shelves provide flexible placement
• and the interior is easy to clean

Important characteristics

• Temperature range: ambient temperature 10 °C to 220 °C
• Controller with digital display of pressure and temperature
• Program-controlled drying monitoring with automatic ventilation at end of process
• Internal data logger, measured values can be read out in open format via USB
• 1 aluminum expansion rack, can be custom-positioned
• Inert gas connection
• Shatterproof, spring-mounted safety glass panel
• Large viewing window with option of interior lighting
• Computer interface: Ethernet
• 2 relay outputs, 24 V DC (max. 0.4 A)

Optional equipment

• Touchscreen Controller – Graphical display of main process parameter
• Expansion racks – Choice of aluminum or stainless steel racks depending on the application requirements
• Analogue output for temperature and pressure signals – for external monitoring and evaluation of the process parameters, integration into in-house systems is possible
• Universal ventilation – Selection of different ventilation by air or inert gas
• Universal access port DN 40 – for the introduction of external measuring devices
• Multi Management Software APT-COM – Manage, record and document device parameters
• Services – extensive services ensure correct device function
